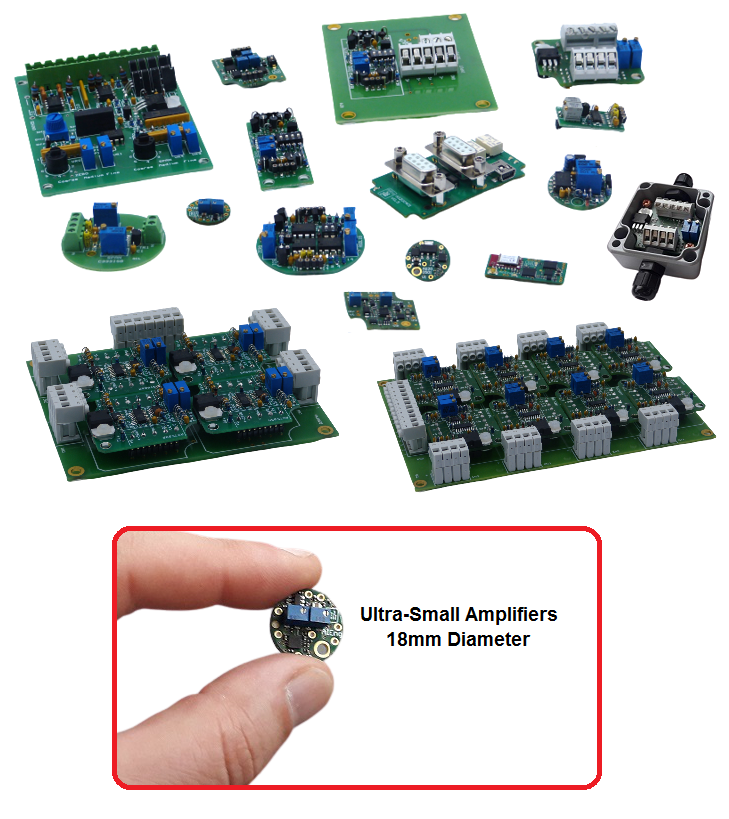

Load Cell, Strain Gauge Amplifiers
Amplifiers

Our signal-conditioning bridge amplifiers can be used with load cells, strain gauges, pressure sensors, hydrostatic transmitters and other kinds of differential bridge sensors. They have been designed to be highly flexible with a wide variety of technical and mechanical features. They can be used as standard, ready-to-go units, or we can probably tweak one to fit your particular requirements.


Some of the main features include: 2-wire or 3-wire systems (power supply/output signal); analog output (current, voltage), digital output (I2C, RS232, RS485, USB), sensor excitation source (voltage, current), sensor bridge resistance (87R, 120R, 350R, 1000R, etc.). They can be fitted "in-line" or mounted directly with the transducer sensor. We offer some of smallest amplifiers in the industry, with a diameter of only 18mm! (same size as a 5p piece).


If you require help selecting a suitable amplifier, or require a completely new one, please give us a call!

2-Wire, Current Output Amplifiers

Load Cell Amplifier AS0332
AS0332 Amplifier
2-Wire, Current Output
25.4mm Ø compact board
AS0332 Datasheet
Load Cell Amplifier ASC333
ASC333 Amplifier
2-Wire, Current Output
40.6mm Ø board, clamp connectors
ASC333 Datasheet
Load Cell Amplifier ASLH176
ASLH176 Amplifier
2-Wire, Current Output
56mm x 23mm board, Current-source excitation
ASLH176 Datasheet
Load Cell Amplifier ASR333
ASR333 Amplifier
2-Wire, Current Output
29.2mm x 15.3mm compact board
ASR333 Datasheet
Load Cell Amplifier ASRT4
ASRT4 Amplifier
2-Wire, Current Output
89mm x 70mm board, Current-source excitation
ASRT4 Datasheet
3-Wire, Current Output Amplifiers

Load Cell Amplifier AS0100
AS0100 Amplifier
3-Wire, Current Output
29mm x 29mm board, Transient protection
AS0100 Datasheet
Load Cell Amplifier AS0332B
AS0332B Amplifier
3-Wire, Current Output
25.4mm Ø circular compact board
AS0332B Datasheet
Load Cell Amplifier AS200501
AS200501 Amplifier
3-Wire, Current Output
18mm Ø ultra-compact board
AS200501 Datasheet
Load Cell Amplifier AS200507
AS200507 Amplifier
3-Wire, Current Output
18mm Ø ultra-compact board, Bipolar output
Please call for details.
Load Cell Amplifier AS200706
AS200706 Amplifier
3-Wire, Current Output
29mm x 29mm board, Linearity adjustment
AS200706 Datasheet
Load Cell Amplifier AS7539A
AS7539A Amplifier
3-Wire, Current Output
48mm x 41mm board, Several options
AS7539A Datasheet
Load Cell Amplifier ASDL1B
ASDL1B Amplifier
3-Wire, Current Output
43mm Ø board, Linearity adjustment
ASDL1B Datasheet
Load Cell Amplifier ASUNIAMP
ASUNIAMP Amplifier
3-Wire, Current Output
72mm x 108mm board, Transducer remote-sensing
ASUNIAMP Datasheet
3-Wire, Voltage Output Amplifiers

Load Cell Amplifier AS200507
AS200507 Amplifier
3-Wire, Voltage Output
18mm Ø board, Uni-/Bipolar output
Please call for details.
Load Cell Amplifier AS7539A
AS7539A Amplifier
3-Wire, Voltage Output
48mm x 41mm board, Uni-/Bipolar output
AS7539A Datasheet
Load Cell Amplifier ASUNIAMP
ASUNIAMP Amplifier
3-Wire, Voltage Output
72mm x 108mm board, Uni-/Bipolar output
ASUNIAMP Datasheet
3-Wire, Multi-Channel Amplifiers

Load Cell Amplifier Multichannel

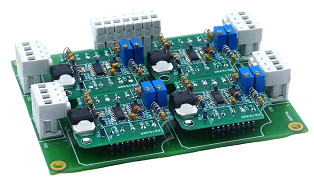

AS7539A 4-Channel Amplifier
3-Wire, Current/Voltage Output
127mm x 104mm board, optional housing
AS7539A-4 Datasheet
Load Cell Amplifier Multichannel

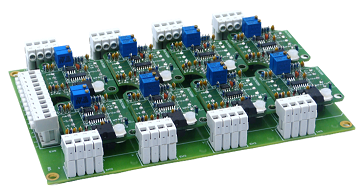

AS7539A 8-Channel Amplifier
3-Wire, Current/Voltage Output
183mm x 127mm board, optional housing
AS7539A-8 Datasheet
USB Digital Amplifiers

Load Cell Amplifier AS200401-1
AS200401-1
USB Output, 1-Channel, 24-bit
61mm x 33.5mm board, Bridge amplifier
Please call for details.
Load Cell Amplifier AS200401-2
AS200401-2
USB Output, 2-Channel, 24-bit
61mm x 33.5mm board, Bridge amplifier
Please call for details.
I2C Digital Amplifiers

Load Cell Amplifier AS200506
AS200506
I2C Output, 16-bit
18mm Ø board, Auto-/Manual Adjustments
Please call for details.
Load Cell, Strain gauge Displays
Digital Indicators

Our digital indicators use Liquid Crystal Display (LCD), Light-Emitting Diode (LED) and Vacuum Fluorescent Display (VFD) component technologies. These are available in a wide range of colours, sizes, electrical and mechanical features depending on the end application. Most of our indicator modules are tailor-made for a specific application and customer. We do, however, also offer standard LCD indicator modules in various digit sizes and forms (portable or panel mount), that support load-cell applications.


We are currently designing several new modules to support various other sensor signal types (Pulse, Frequency, Temperature, Voltage, Current, PWM, Potentiometer and Incremental Encoders) as well as incorporating wireless technology.


If you require help selecting a suitable display or require a custom solution, please give us a call!

Digital Indicators - LCD Display

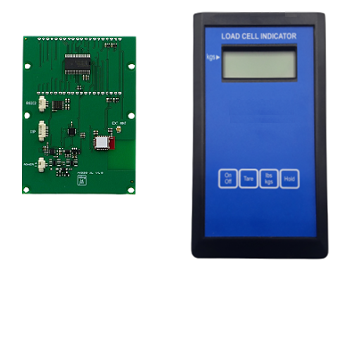

Load Cell Display AS020
AS020-XB2C
Portable Load-Cell Indicator with LCD
68mm x 96mm board, 4.5 digits, battery operated
AS020-XB2C Datasheet

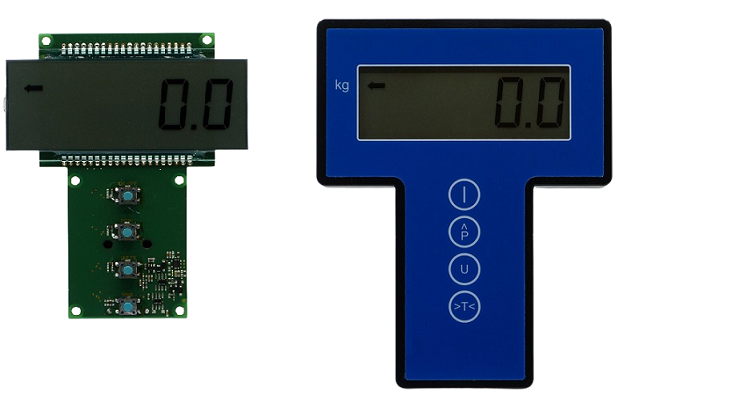

Load Cell Display AS021
AS021-XB2C
Panel-mount, Load-Cell Indicator, 4.5 Digits
68mm x 37mm board, 8mm digit height
Please call for details.
Load Cell Display AS022
AS022-XB2C
Panel-mount, Load-Cell Indicator, 4.5 Digits
68mm x 46mm board, 10.16mm digit height
Please call for details.
Load Cell Display AS023
AS023-XB2C
Panel-mount, Load-Cell Indicator, 4.5 Digits
96mm x 64.5mm board, 20.5mm digit height
Please call for details.
Load Cell Wireless Modules
Wireless Modules

We are currently designing several wireless (telemetry) modules using the latest state of the art technology, for applications to replace cables. Several hardware modules are already completed. The software is expected to be ready for production by end of 2020.


Here is a sneak preview of some of the implemented features: ultra-compact wireless sensor board 30x15mm; ultra low-voltage battery management (operation with 1 battery cell!); supports a whole range of transducer signals; internal and external antenna options.


For more information, please give us a call!

Load Cell Calibrator AS600 Series
Load Cell Simulators / Calibrators

The AS600 simulator / calibrator series simulate any type of bridge transducer commonly used, for example, in load cells, strain guages, pressure sensors, extensometers and many other sensors. The dual attenuator network gives a symmetrical output simulating a full active bridge sensor and can be switched to give a positive, zero and negative output. They can be used for a whole range of purposes including transducer testing, amplifier calibration, fault-finding, system commissioning and R&D. They are mounted in an IP54 aluminium die-cast box providing durability in either laboratory or field environments.


Customer-specific bridge resistance ranges and outputs are possible, as well as company name printed on enclosure lid. Please contact us with your individual requirements.

AS600 Series

Load Cell Calibrator AS600
AS600
0mV/V - 3.0mV/V, 0.01% Tolerance
120R - 1000R
AS600-Series Datasheet
Load Cell Calibrator AS610
AS610
0mV/V - 1.0mV/V, 0.01% Tolerance
120R - 2000R
AS600-Series Datasheet
Load Cell Calibrator AS620
AS620
0mV/V - 3.0mV/V, 0.01% Tolerance
350R - 8000R
AS600-Series Datasheet
Load Cell Calibrator AS630
AS630
0mV/V - 5mV/V, 0.01% Tolerance
120R - 1000R
AS600-Series Datasheet
Asset Instruments Keith Wilson and John Street
About Us

We are a newly formed company founded in May 2018 after acquiring Asset Instruments Ltd from John Street, bringing together over 30 years expertise in the design, development, in-house assembly and support of ODM (Original Design Manufacturer) instrumentation products, supplying manufacturers of load cells, strain gauges, pressure sensors, hydrostatic transmitters and many other transducer manufacturers with a wide range of products to integrate into their products and systems. We also offer OEM electronic manufacturing services according to your own design and requirements, ranging from component procurement, SMD- and THT-board assembly, CPLD- / microcontroller programming, cable/wiring assembly, mechanical assembly, product functionality testing and packaging, certified according to ISO 9001:2015.


If you require a completely new unique product or a variation of an existing product, we are very happy to design and manufacture this for you. The non-recurring engineering costs (for development and prototyping) can be amortized across one or more series builds of the product. Alternatively, you can purchase the complete engineering CAE-files and manufacturing CAM-files for an agreed one-off price.


Please call us - we are here to help!
